ROXS-D

Name: ROXS-D
SKU: ROXS-D Aero Road Disc Brake

New aero road disc brake frame

– Flat mount disc brake mount

– 140mm disc rotor

– Full internal cable routing

– Mechanical and Di2 groupset compatible

– High modulus carbon fiber

WEIGHT 1160 g

SIZE 54cm

SKU: ROXS-D Aero Road Disc Brake Categories: DISC BRAKE SERIES, FRAMES, ROAD / GRAVEL

TECHNICAL SPECIFICATIONS

Frame	New road disc brake frame with integrated carbon stem
Material	High modulus Toray T700 carbon fiber
Size	48, 51, 54, 56, 58
Fork	Specify aero carbon fork
Stem	90/100/110/120mm
Headtube	Straight 1 1/2" head tube
Weight	1160g/54cm
Seatpost length	Specify setback adjustable seatpost
Bottom bracket	PressFit BB86
Max tire clearance	700*28c
Brake mount type	Flat mount Disc brake 140mm
Dropout	Front 12100mm thru axle Rear 12142mm thru axle
Groupset	Recommended install electronic shifting groupset
Handlebar&stem	Integrated handlebar – Compatible with HBR07
Test Standard	ISO4210
Warranty	2 years

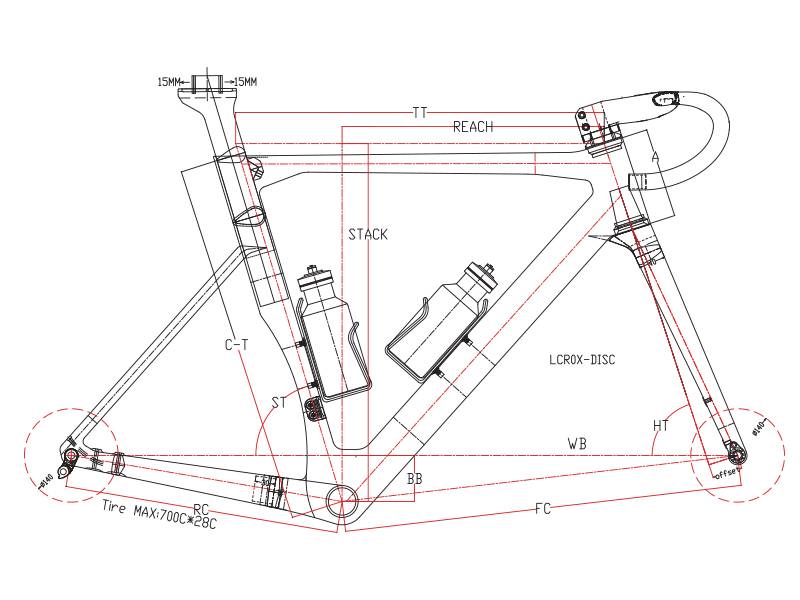

GEOMETRY

SIZE	C-T	A	Offset	TT	HT	ST	BB	RC	WB	FC	STACK	REACH
480	480	115	45	520	71.5°	73.5°	69	410	968.3	568.4	506.1	371.1
510	510	130	45	535	71.5°	73.5°	69	410	983.9	583.8	529.8	379.1
540	540	135	45	550	72°	73.5°	69	410	994.6	594.5	536.3	391.3
560	560	150	45	560	72°	73.5°	69	410	1004.9	604.6	550.6	396.9
580	580	175	45	575	72°	73.5°	69	410	1020.6	620.2	574.4	404.9
