R1088-D

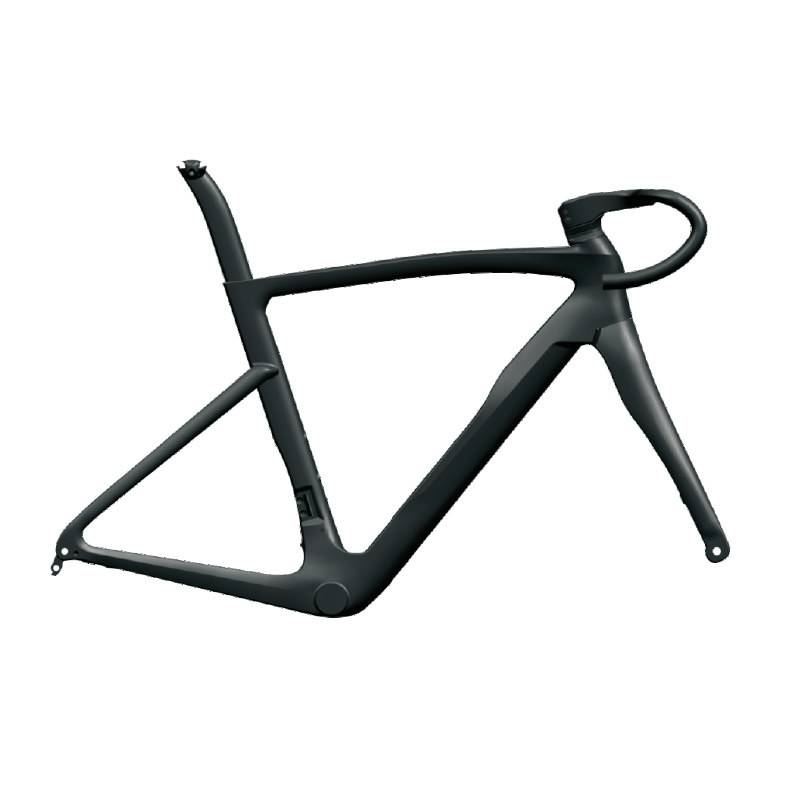

Name: R1088-D
SKU: R1088-D 2023 New Road Disc Brake

700C Carbon Aero Road DISC Brake Frameset

– Full internal cable routing

– Machanical and Di2 groupset compatible

– High modulus carbon fiber

– Shimano flat mount 140mm disc rotor

– Dropout 12*100mm front&12*142mm rear

WEIGHT 1050 g

SIZE 54cm

SKU: R1088-D 2023 New Road Disc Brake Categories: DISC BRAKE SERIES, FRAMES, ROAD / GRAVEL

TECHNICAL SPECIFICATIONS

Model	R1088-D
Frame	700C Full Carbon Aero Racing Road Frameset
Inlcuding	Frame / Fork / Seatclamp / Seatpost / Spacers / Headset /HB088
Frame Size	490/520/540/560/590mm
Integrated handlebar with stem HB088	Width 400/420/440mm Stem sizes 75/90/100/110/120/130mm
Cable Routing	Full Internal Cable Routing(For RB/FD/RD)
Cable plug	Mechanical and DI2(2 in 1)
Grade Available	A:990g B:1050g (540mm/BB86)
HeadTube	1 1/2" – 1 1/2" （ upper 52mm lower 52mm, FSA standard)
Seat Post:	Specified seatpost
Bottom Bracket	Pressfit BB86
Tire Max	700*30C
O.L.D	Rear TA Φ12142mm, Fork TA Φ12100mm
Disc Brake:	Shimano Flat Mount 140mm or 160mm
Fork weight	A: 400g; B: 450g
Fork offset	43mm
Max Chainring	55-42T
Testing standard	ISO4210
Warranty	2 years

GEOMETRY

SIZE	CF	L	I	A	B	F	P	T	D	R	G	STACK	REACH	WB
490	460	525	149.7	74.5°	71.5°	574.6	406	110	72	43	373	516	375.3	969.6
510	480	535	153.8	74°	72°	577.5	406	120	72	43	373	522.7	381.2	972.5
530	500	545	154.4	73.7°	72.5°	583	406	130	72	43	373	539.8	385.6	978.1
550	520	555	163.2	73.5°	73°	589.8	406	140	72	43	373	552.1	391.8	987
570	540	565	165.5	73°	73.5°	596	406	150	72	43	373	575.3	399.5	993
